Machine grinding

Machine grinding is the most efficient finishing process for parts with high demands on accuracy and surface roughness. TEN FAB performs round, flat and thread grinding operations using specialized high-precision equipment.

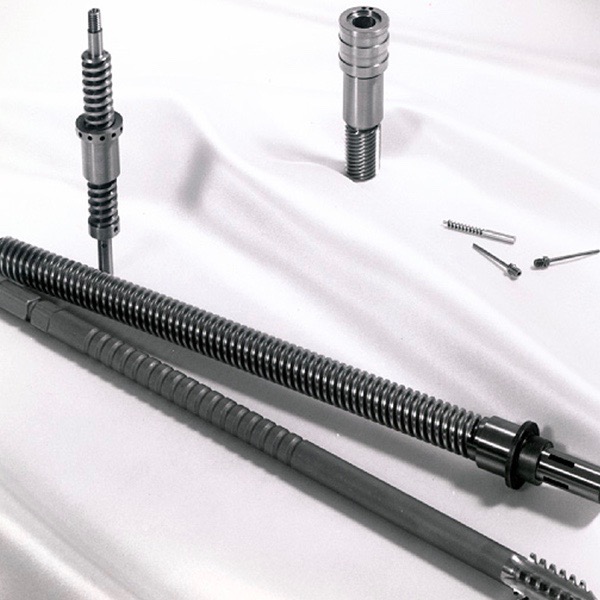

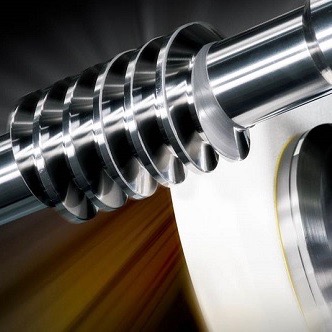

Thread grinding

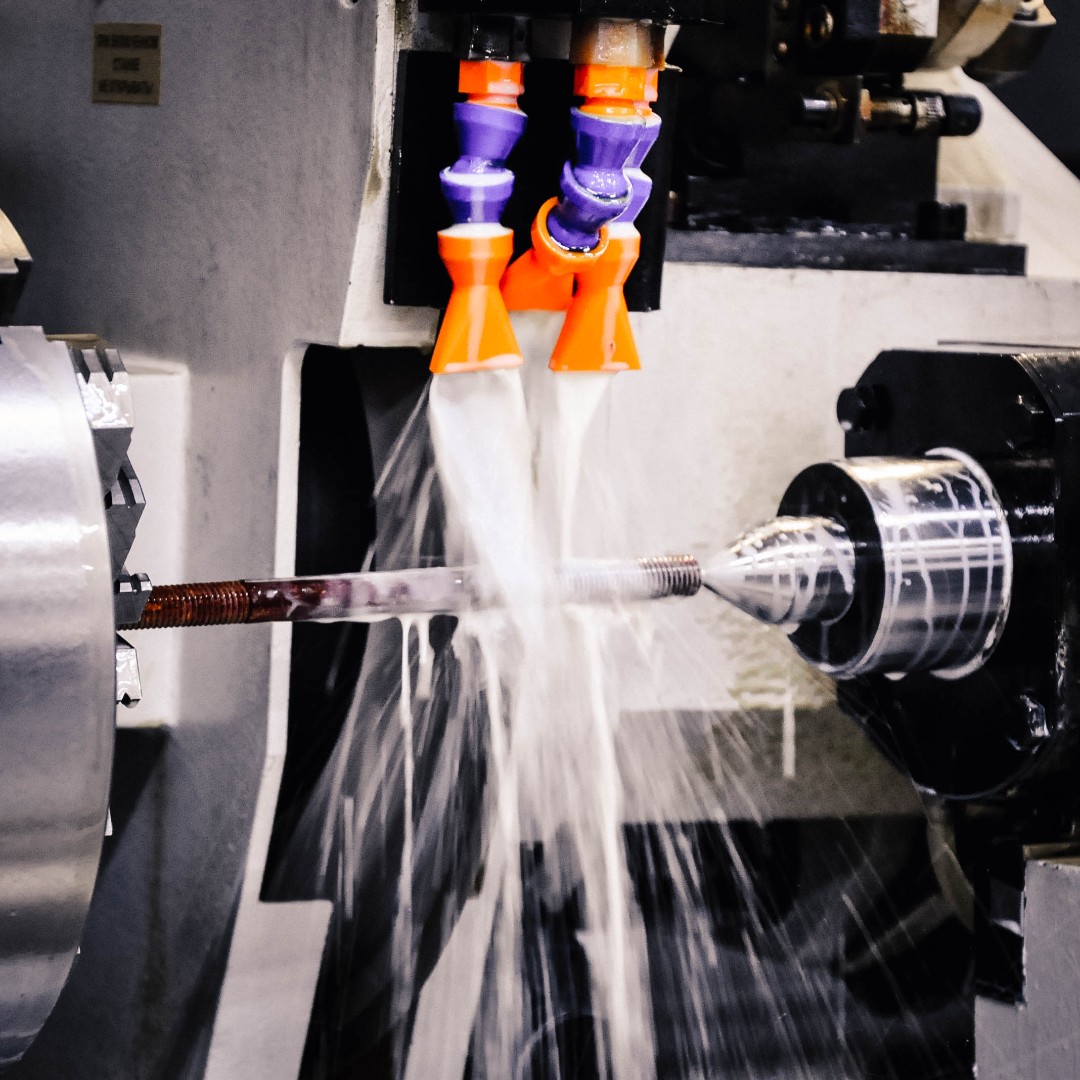

The thread grinding machine with CNC allows to increase the accuracy and quality of the already made external thread and to make threads in metals and composites with high accuracy.

Thread grinding ОШ-633Ф3

Processing diameter: 320
Processing length: 1250
Spindle parts: 1-100 turn/min
Spindle grinding circle: 2800 turn/min
Angle of rotation of the circle: +15° -15°
Workpiece weight: <40 kg

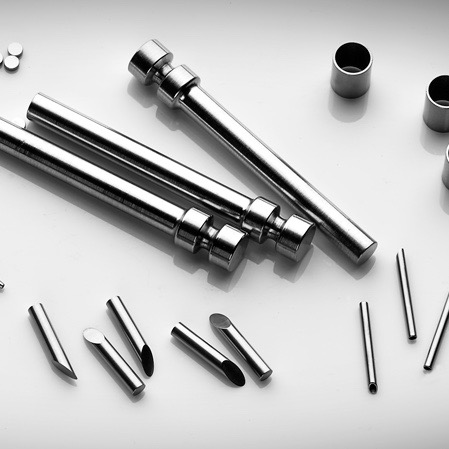

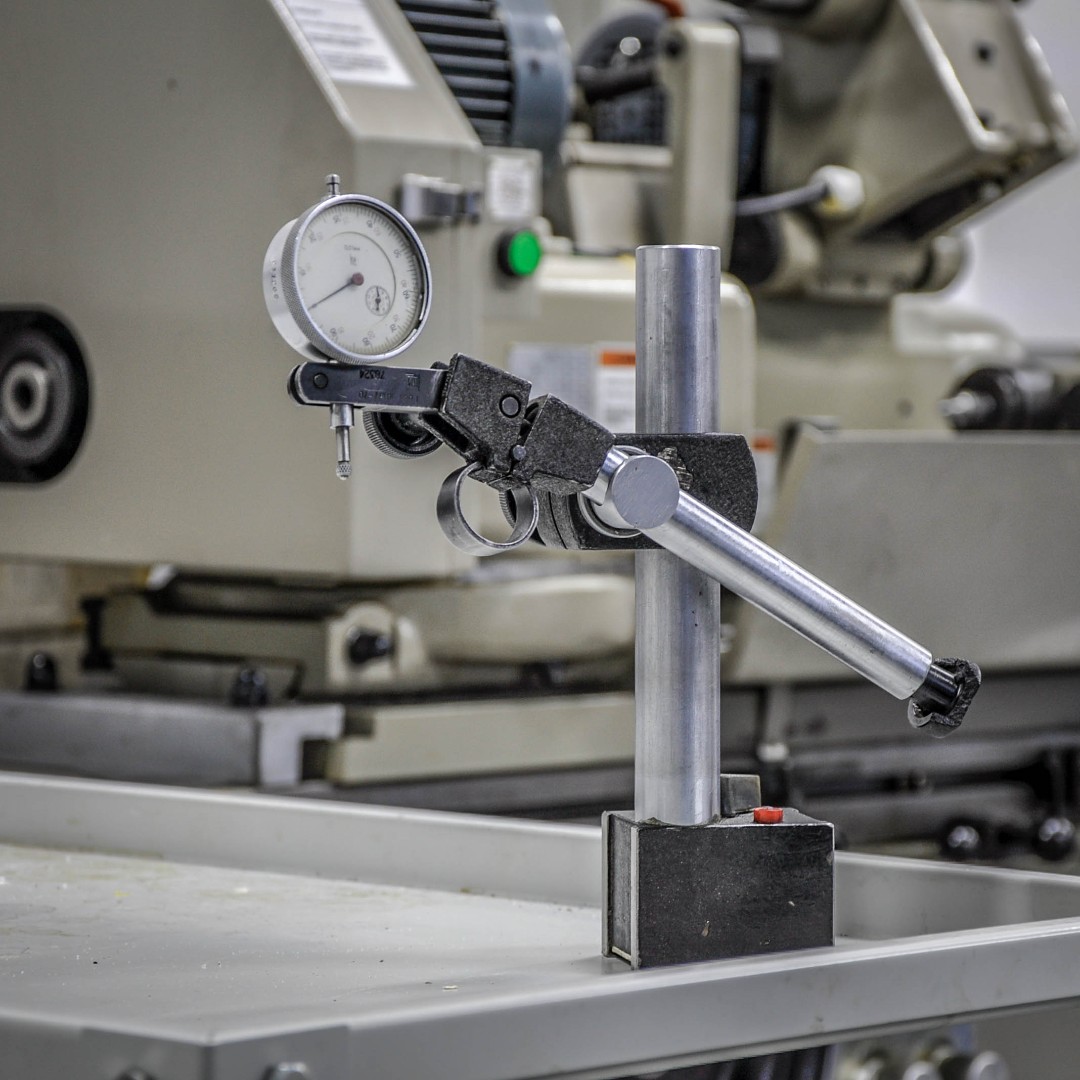

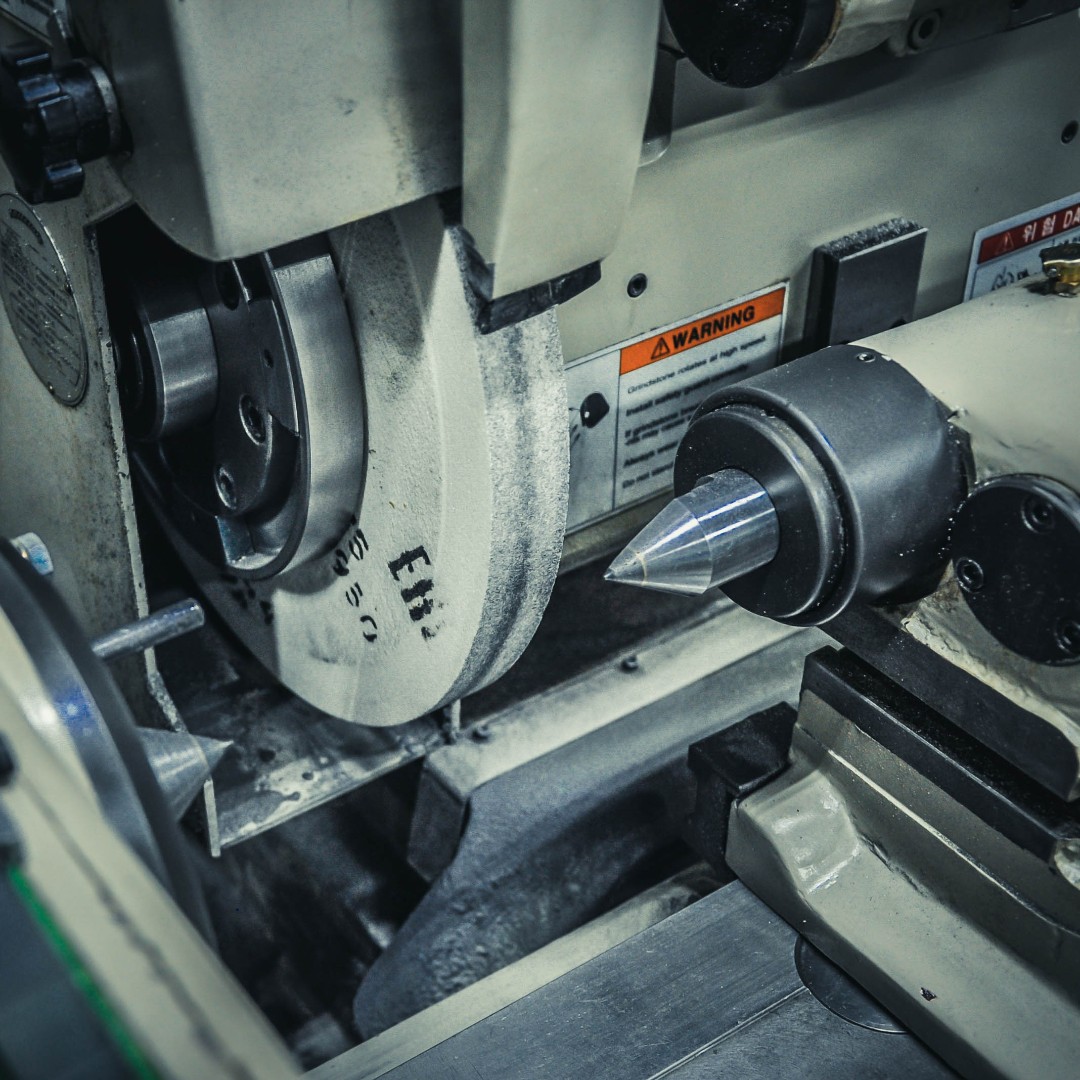

Cylindrical grinding

Cylindrical grinding machine provides precision surface sizes up to 0.5-1 micron and roughness up to R 0.2-0.8 microns and the possibility of grinding a surface of high hardness, up to 60-65 HRC. The method of round grinding "in centers" with longitudinal feed and lunettes as intermediate supports of the workpiece for additional rigidity is used.

Circular grinding S&T Dynamics TGU-32

Spindle: 1900 turn/min/3.7 kW
Processing diameter: 150
Processing length: 500
Workpiece weight: до 130 kg

Sharpening TOP Work M40

Spindle: 6200 turn/min/1.2 kW
Diameter above the table: 250
Center distance: 700
Table: 135х940
Moving the table XY: 400х250
Rotate the table: +60°-10°

Surface grinding

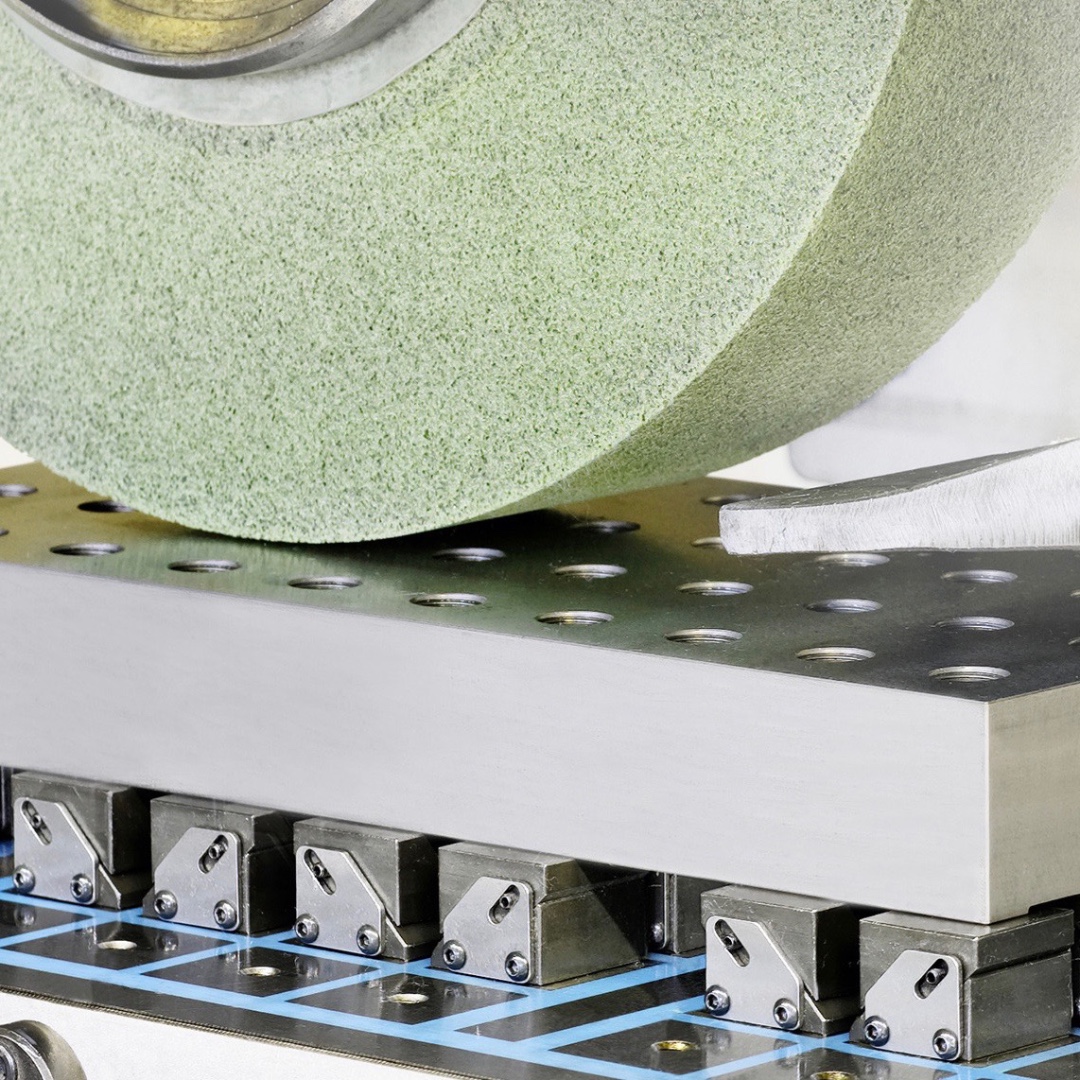

Surface grinding machines provide precision surface sizes up to 0.5-1 micron and roughness up to Ra 0.2-0.8 microns, the ability to handle high hardness up to 60-65 HRC. The method of grinding periphery of a circle is used when fixing a part on a magnetic table.

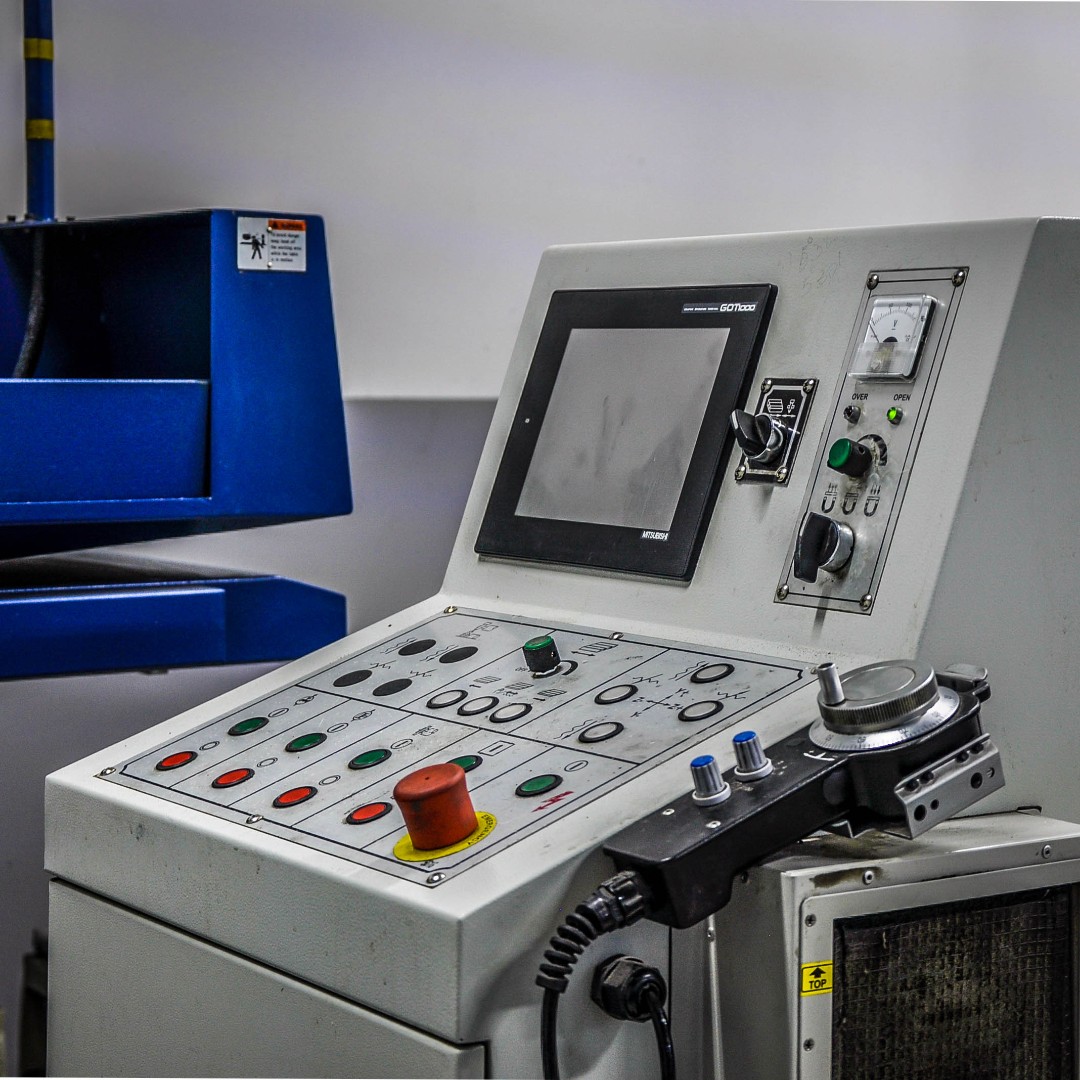

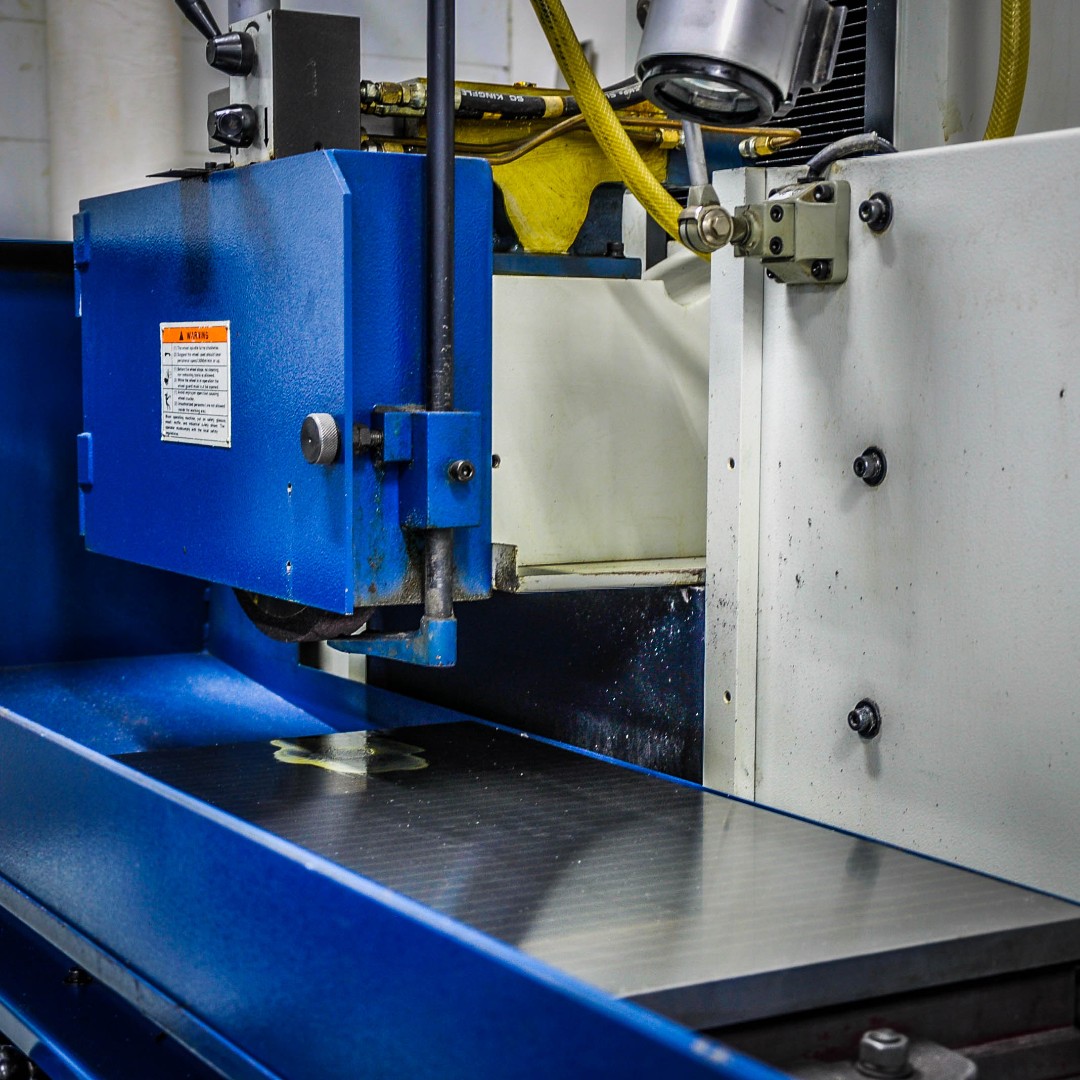

Surface grinding KENT KGS-63

Spindle: 1450 turn/min/3.7 kW
XYZ table: 710x340x360
Max. workpiece size: 550х250х300
workpiece weight: <250 kg
Magnetic table
